AISOP as a guided system atlas.

Read the diagrams as the public story, then zoom into the constellation to see how a standard AISOP software package is shaped.

Read the atlas Start with the public diagrams. Explore structure Zoom into the package constellation.

Diagram Atlas

The public AISOP story, from custody to orchestration.

These diagrams are the primary public explanation. The constellation below them is a live package-structure viewer for the same discipline.

Content Stewardship

Preserve everything. Distill what matters. Compose what is needed.

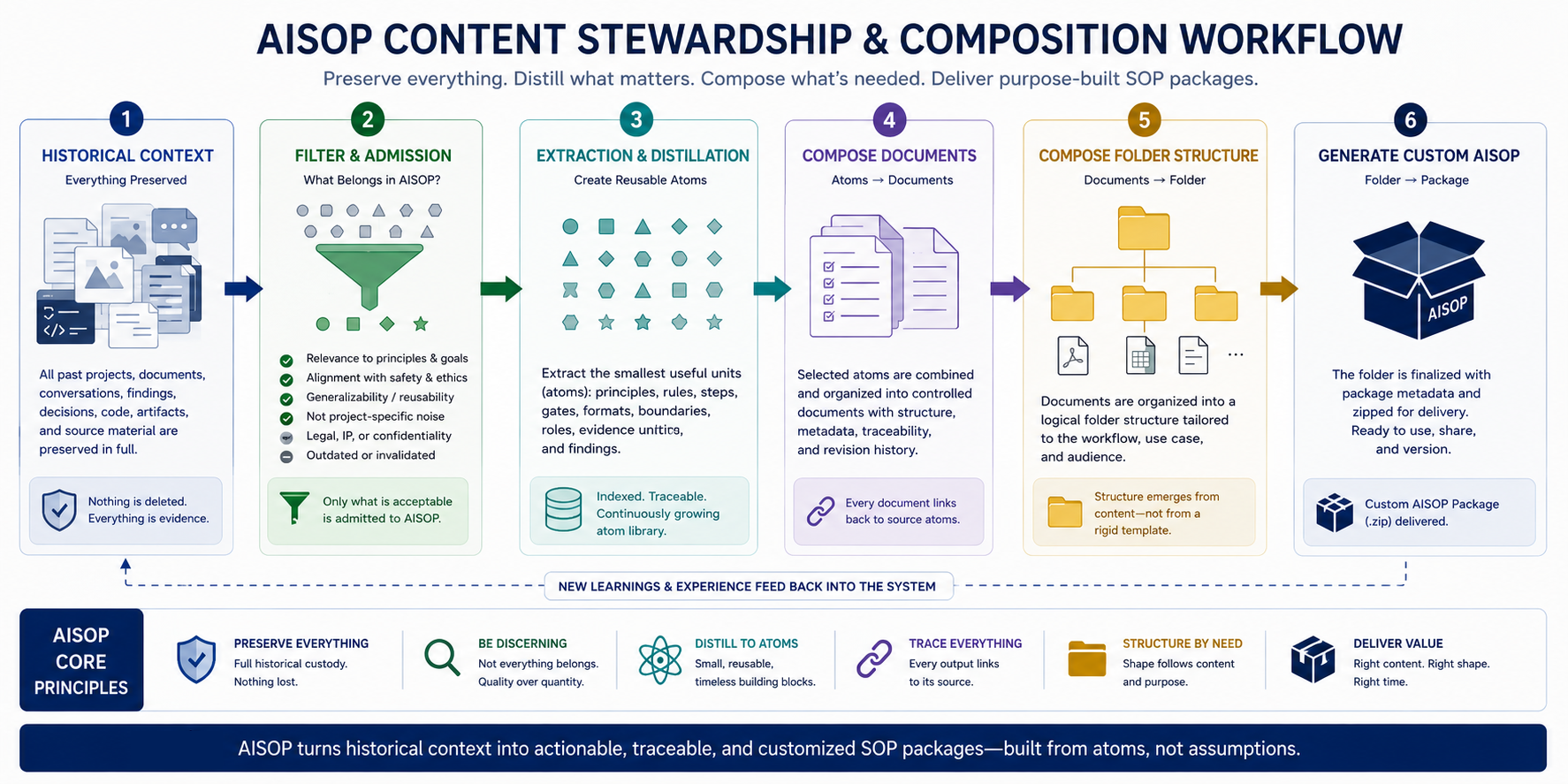

AISOP begins with custody of context, then filters, extracts, composes, structures, and delivers purpose-built SOP packages. The atoms are reusable method units; the molecule is the package that emerges from them.

Historical context Admission gates Reusable atoms Traceable output

AISOP content stewardship and composition workflow showing six stages from historical context through custom AISOP package delivery.

Controlled Orchestration

Reusable tasks become governed sequences with gates and human oversight.

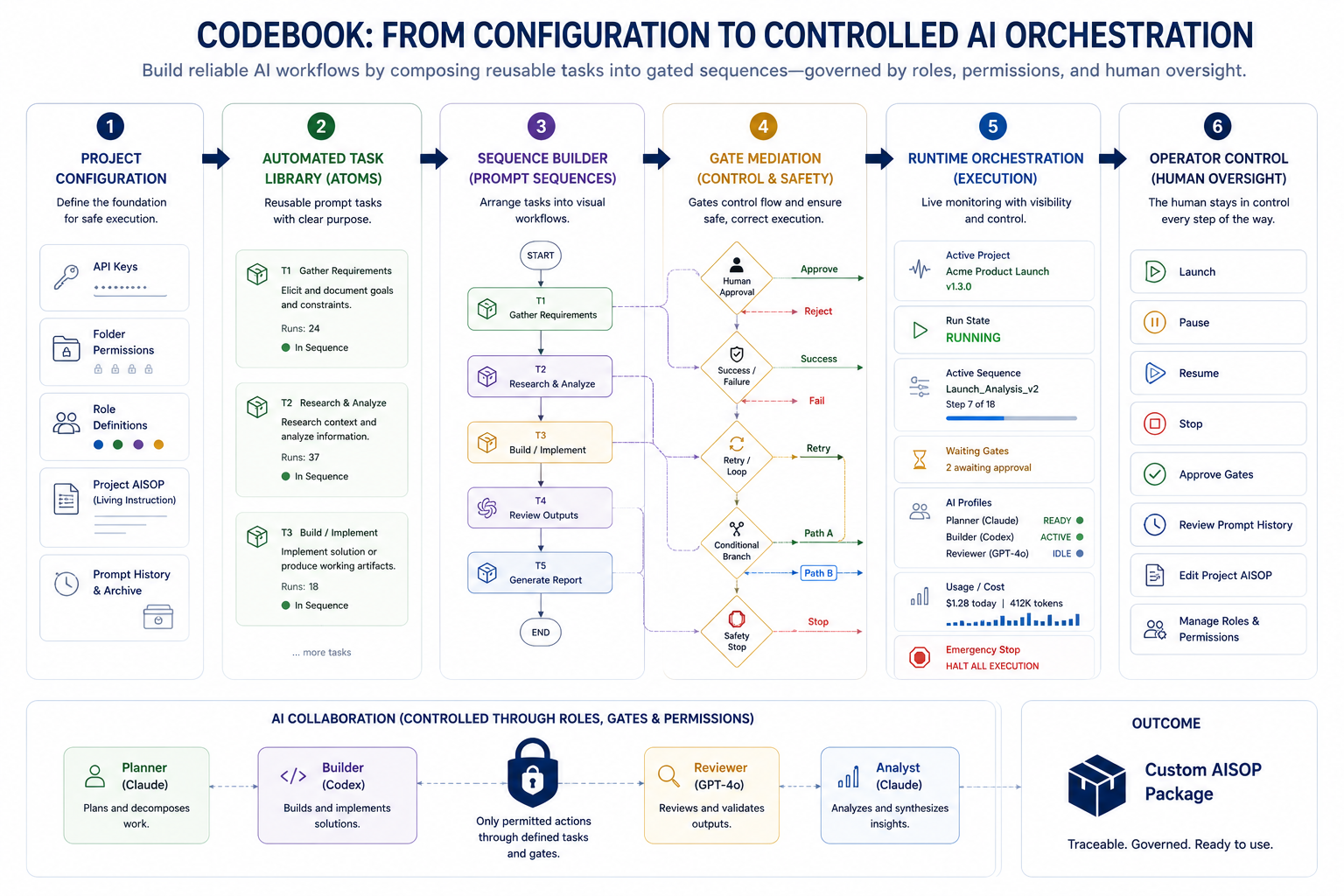

The CodeBook orchestration diagram shows why AISOP is not just a folder or prompt list. It is controlled composition: roles, gates, runtime state, operator actions, and final package outcomes stay visible.

Task library Sequence builder Gate mediation Operator control

CodeBook infographic showing project configuration, task library, sequence builder, gate mediation, runtime orchestration, operator control, and outcome.

Execution Spine

Every node has a job, a return contract, and a bounded next step.

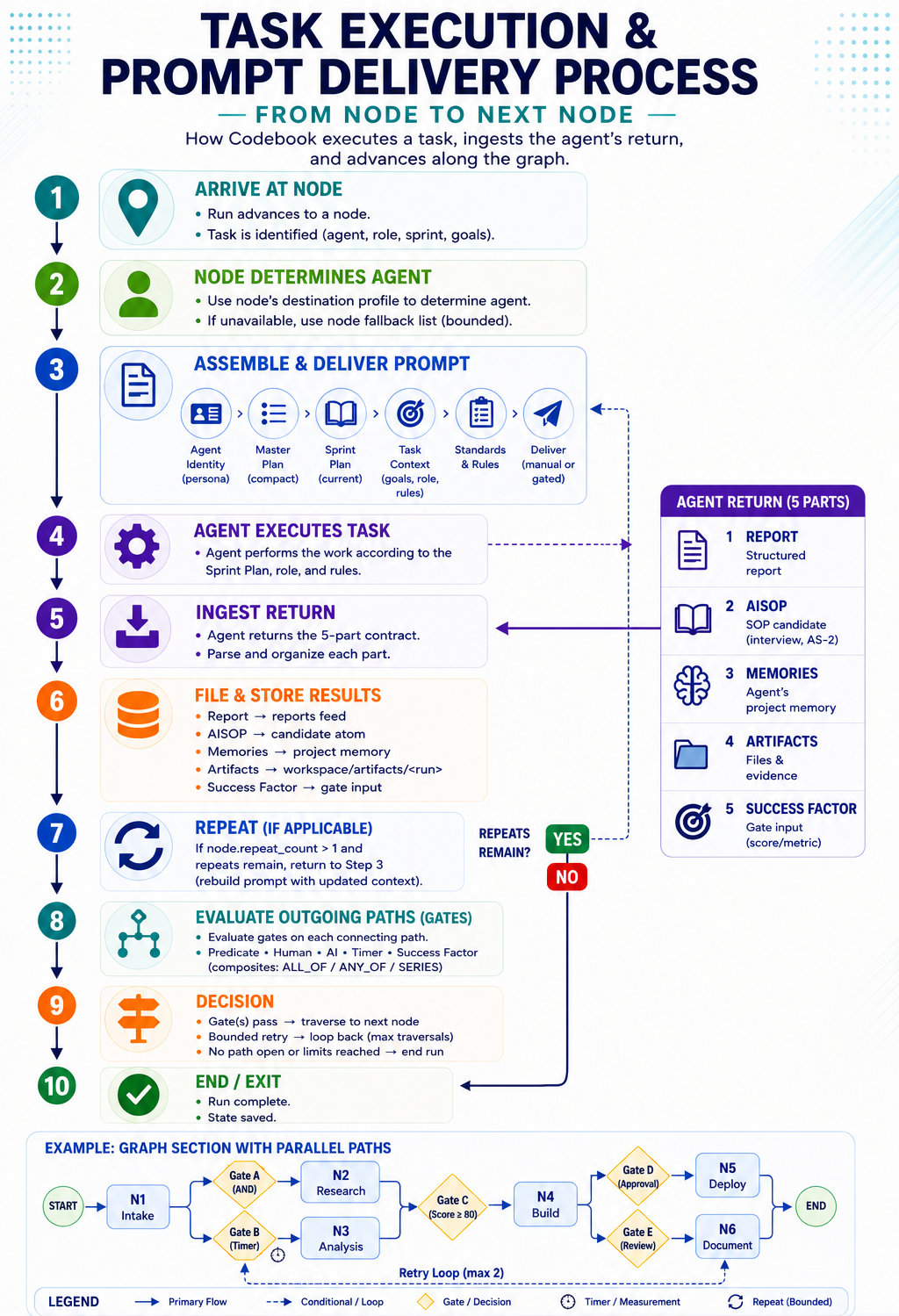

The node progression diagram makes the hidden discipline visible: arrive at a node, choose the agent, assemble the prompt, execute, ingest the return, evaluate gates, and move forward only when the path is justified.

Node arrival Prompt assembly Return contract Gate decision

Task execution and prompt delivery process diagram showing node arrival through gate evaluation and end or exit.

Package Constellation

Zoom deeper to reveal the AISOP software package structure.

Folders behave like molecules. Files behave like atoms. The deeper you zoom, the more of the standard package structure appears.

Depth 1 / 4 YYYYMMDD_00_package-name 0 visible nodes

Use the mouse wheel, trackpad, Zoom In, or click a folder to go deeper. Move the pointer over dense areas to reveal labels.

Package root Folder / module File atom Documentation Runtime data

Boundary

This is a curated public demo, not the full AISOP package. No uploads, accounts, backend, or release claim are present.
